VHF COFDM HD Wireless Transmitter 8w Live Broadcasting AV Sender

Brand Name : Ding Shen

Model Number : DS-HD105

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T

Delivery Time : 3-7 days

Packaging Details : export standard packing

Modulation : COFDM 2K QPSK

Output Power : 1-8w

Video Resolution : 1280*720@50i; 1920×1080P/I@60hz

DC Input : DC11-16V

Frequency Range Output : 300-800MHz（optional）

Dimension : 180*110*85mm(with Dual V Mounts)

Contact Now

VHF COFDM HD Wireless Transmitter and Receiver Live Broadcasting AV Sender

Man - pack Wireless Transmitter Feature:

  1. COFDM modulation,stability signal
  2. HD-SDI/HD and BNC input
  3. Bandwidth 4/8MHz adjustable
  4. HD & composite video input
  5. Balanced stereo audio input.
  6. Dual V battery mounts
  7. 1-5.5W rf power output adjustable
  8. Live broadcasting ,low delay time

Specifications:

Power supply
DC Input DC11-16V
Working Current 1.9A@12V
Output Power 1~8Watt
Video transmission:
Frequency range Output

300-800MHz(optional),

1.0-1.4G/2.3-2.5G/4-4.4GHz(customized)
Modulation COFDM,2K ,QPSK
RF bandwidth 4/8MHz(adjustable)
RF Power output 1-5.5W(adjustable)
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
AV input BNC: D1 standard definition
HD: HD1080i/1080P, 720P, 576, 480
HD-SDI:HD1080i/1080P, 720P, 576, 480
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Audio transmission
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
Audio channel Stereo L/R audio channel
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Encoding
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution

Minimum 1280*720@50i

Maximum 1920×1080P/I@60hz
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Max speed rate 450km/h
Format YCbCr4:2:2
Working Environment
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Appearance

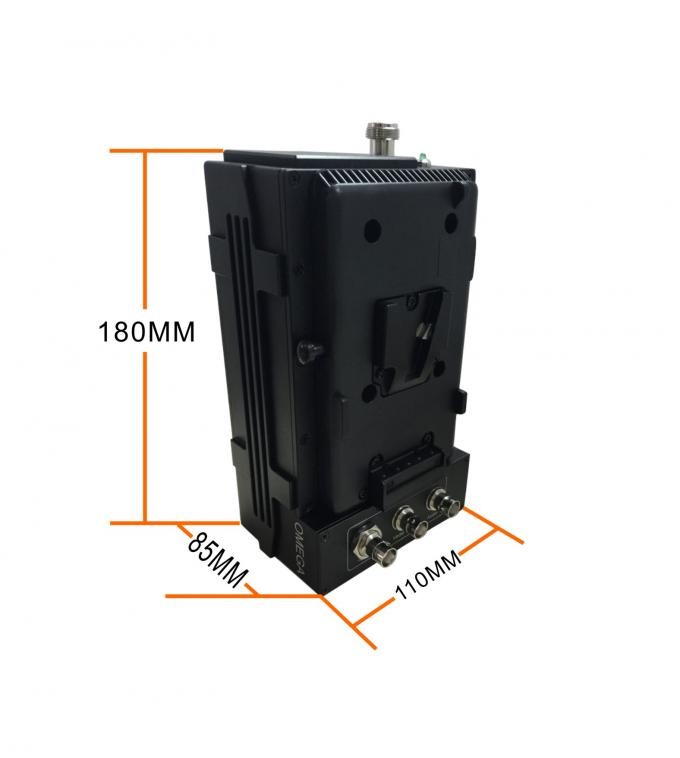

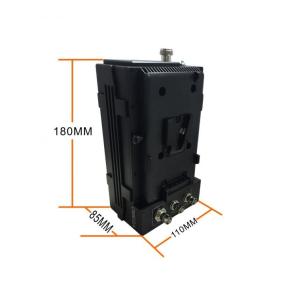

Dimension 180*110*85mm(with dual V mounts)
Weight 1.6kg

VHF COFDM HD Wireless Transmitter 8w Live Broadcasting AV Sender
